- Place of Origin: China
- Brand Name: Yuanhong machinery
- Model Number: -VFS7300
- Weight: 2000.000 kg
feature:

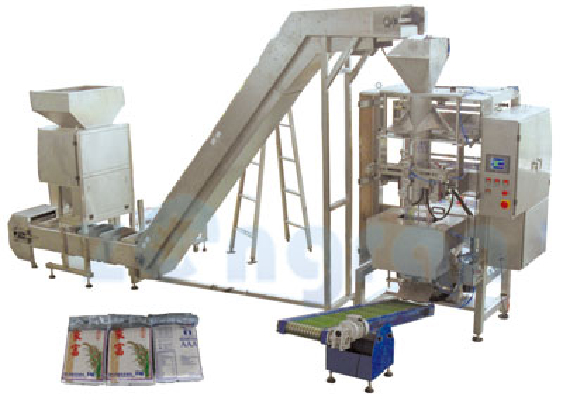

the unit consists of VFS7300 auto vertical packaging machine, CJS2000 auto weighing machine, DT5 Z type bucket elevator, ZB2000 vacuum packaging machine and take-off produce conveyor. the machine line advanced in material-lifting, measuring, bag-makig, fillig, vacuuming, sealing, cutting and conveying such chief processig step, take reasult in getting nice bag shap and appropriate vacuum degree.
technical parameter:
packing speed: 6-15bag/min
packing range: 1kg-5kg
bag type:pillow bag(two side)
bag size:(50-460)x(80-350)mm(L*W)
measuring accuracy: 5g-10g
Air requirement: 0.6Mpa 0.65m3/min
film reel outer diamater:Φ500mm
film core inner diamater:Φ75mm
machine weight: 2000Kg
- Place of Origin: China
- Brand Name: Yuanhong machinery
- Model Number: -VFS7300
- Weight: 2000.000 kg
The parameters of ZB2000A Automatic Vacuum Packing Machine Unit for Rice
Packing speed | 6-15 bags/min |
Measuring range | 1-5kg |
Shape of bag making | Brick-shaped bag |
Bag size | (50-460)×(80-350) mm(L×W) |
Compressed air requirement | 0.6MPa, 0.65m3 /min |
Metering accuracy | 5-10g |
Reel outer diameter | 500 mm |
Core inner diameter | 75 mm |
Power source | 5.5KW, 380V±10%, 50Hz |
Machine weight | 2000 kg |
