- Place of Origin: China
- Brand Name: Yuanhong machinery
- Model Number: CJ5000
- Weight: 100.000 kg
Poduct Introduction:

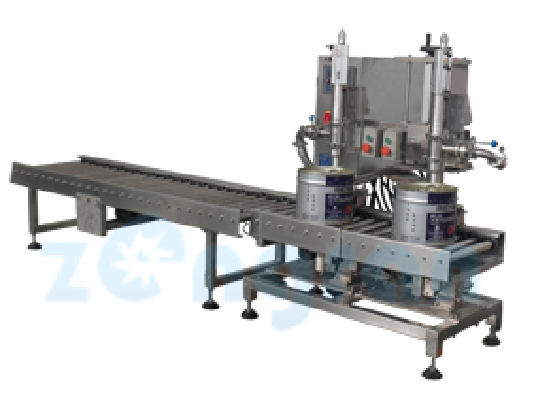

The machine adopts labor to put the empty bucket,the photoelectricity which detects the position,flexible filling head with weighing function,the machine start filling automatically and manually.the liquid is tripping down automatically.our filling machine supplies fast and low speed filling.the filling volume will be adjusted slowly according to the practical data to reduce the error reduction.when the liquid is finshed filling,the machine will start the weighing conveyor and then the photoelectricity comes to the former position.The machine adopts PLC programme control with the product specification memory function.the weight and specification can be set in the touch screen.
Parameters:
power:3 phase 1kw
filling accuracy:0.5%
filling speed :4-10buckets/min
filling weight:less than 30Kg
maximum weight sensor can bear:100Kg
air compressure:≥0.5MPa
- Place of Origin: China
- Brand Name: Yuanhong machinery
- Model Number: CJ5000
- Weight: 100.000 kg
Technical parameters:
Object size | 10-350g |
Capacity | 50~80 bottles/min |
Power | 0.12kw |
Equipment weight | 220kg |
Dimension | 1150×900×950mm(LxWxH) |
